Model：VGO-V260-C1
This system is suitable for a wide range of food products, especially triangle bag packaging for nuts, snacks, candies, granules, and other small solid materials.
- Nuts (Almonds, Peanuts, etc.)
- Snack Foods (Candies, Breath Mints, etc.)
- Granule Products (Coffee Beans, Seeds, etc.)
- Health Food Products (Vitamin Candies, Supplement Tablets, etc.)
- Frozen and Dry Food Products (Dry Fruits, Beans,etc.)
- Plastic and Small Parts (Plastic Caps, Small Toys,etc.)
- Hardware Accessories (Small Screws, Nuts, etc.)
- Daily Necessities (Soap Tablets, Fragrance Tablets, etc.)
- Other Regular Shape Products Suitable for Triangle Bag Packing
- And other solid material counting / weighing and triangle bag packing.
1.Machine with automatic function, such as feeding, counting, filling, sealing, cutting, printing the date information and cutting the easy tearing notch.

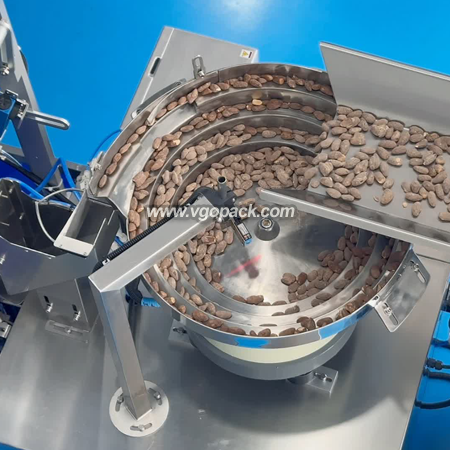

2.Machine with counting systems, vibration bowls & counting bowls could customized from 1 to 48 bowls.
3.Each machine are customized, efficient, flexible, reliable, low maintenance, productive, safe, pneumatic system, reliable working and convenient maintenance.
4.With Mitsubishi PLC control, the length of the bag can be set and cut on one step, saving time and film.
5.High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
6.Temperature independent PID control, more suitable for packing different materials.
7.Positioned stop function, without sticking knife or wasting film.
8.All control is realized through software, easy for function adjusting and technical upgrade.
9.Touch screen easy and quick setting and operation.
|
Machine Model |
Model VGO-V260 |
Model VGO-V280 |
Model VGO-V320 |
Model VGO-V520 |
Model VGO-P250 |
|
Bag Style |
Pillow Bag, Three Side Seal Bag |
3 Side Seal Bag, 4 Side Seal Bag |
Pillow Bag, 3 Side Seal Bag |
Pillow Bag |
Premade Bag |
|
Film Width |
Max. 320 mm |
Max. 180 mm |
Max. 320 mm |
Max. 520 mm |
\ |
|
Bag Length |
Max. 280 mm |
Max. 145 mm |
Max. 230 mm |
Max. 300 mm |
100-250 mm |
|
Bag Width |
70-150 mm |
50-90 mm |
70-150 mm |
140-250 mm |
80-180 mm |
|
Width of Edge |
10 mm |
10 mm |
10 mm |
10 mm |
\ |
|
Packing Speed |
70-150 bags/min |
10-25 bags/min |
10-80 bags/min |
4-10 bags/min |
10-20 bags/min |
|
Machine Weight |
280 kgs |
300 kgs |
300 kgs |
450 kgs |
350 kgs |
|
Sealing |
Straight/ Textured/ Plain |
Straight/ Textured/ Plain |
Straight/ Textured/ Plain |
Straight/ Textured |
\ |
|
Cutting |
Serrated Cutter, Dense Serrated Cutter |
Serrated Cutter, Flat Cutter |
Serrated Cutter, Dense Serrated Cutter |
Serrated Cutter |
\ |
|
Dimensions (mm) |
1150 (L) × 720 (W) × 1465 (H) |
1000 (L) × 1200 (W) × 1665 (H) |
1818 (L) × 800 (W) × 1619 (H) |
4540 (L) × 960 (W) × 2750 (H) |
1100 (L) × 900 (W) × 860 (H) |
|
Air Consumption |
0.4-0.8 MPa |
0.4-0.8 MPa |
0.4-0.8 MPa |
0.4-0.8 MPa |
0.4-0.8 MPa |
|
Packaging Material |
Co-extrusion PE film, Heat Sealable Laminated Film such as OPP, CPP, PE |
Premade Bag |
|||
|
Power |
Single-Phase 220V, 50/60HZ |
||||
|
Machine Frame |
Stainless Steel #201,Stainless Steel #304 |
||||
This system is suitable for a wide range of food products, especially triangle bag packaging for nuts, snacks, candies, granules, and other small solid materials.
- Nuts (Almonds, Peanuts, Cashews, Pistachios, Mixed Nuts, etc.)
- Snack Foods (Candies, Breath Mints, Crisps, Puff Snacks, Small Biscuits, etc.)
- Granule Products (Coffee Beans, Seeds, Sugar Cubes, Desiccants, etc.)
- Health Food Products (Vitamin Candies, Supplement Tablets, Herbal Granules, etc.)
- Frozen and Dry Food Products (Dry Fruits, Beans, Pet Snacks, Small Dried Foods, etc.)
- Plastic and Small Parts (Plastic Caps, Small Toys, Connectors, Clips, etc.)
- Hardware Accessories (Small Screws, Nuts, Washers, Small Fasteners, etc.)
- Daily Necessities (Soap Tablets, Fragrance Tablets, Cleaning Blocks, etc.)
- Other Regular Shape Products Suitable for Triangle Bag Packing
- And other solid material counting / weighing and triangle bag packing.
1.One year quality warrant if no human damage
2.OEM service ,design service and buyer label is offered
3.Online technical support service
4.Warmly welcome to visit our factory
