Model：VGO-160-06S
1. Application Scope:
Widely used in the food and pharmaceutical industries for fully automatic packaging of tea and herbal slices.
2. Packaging Types:
Suitable for packaging of various bagged beverages, including:Green Tea, Black Tea, Dark Tea, Oolong Tea, Yellow Tea, White Tea, Flower Tea, Blended Tea, Flavored Tea, Herbal Tea, Coffee, Goji Berry, Mulberry Leaf, Chinese Herbal Pieces, etc.
1.The machine adopts a PLC control system, ensuring smooth operation, precise movements, stable performance, and high packaging efficiency.
2.It is suitable for triangular (pyramid) packaging and flat packaging. One-button switching allows easy change between the two packaging modes.

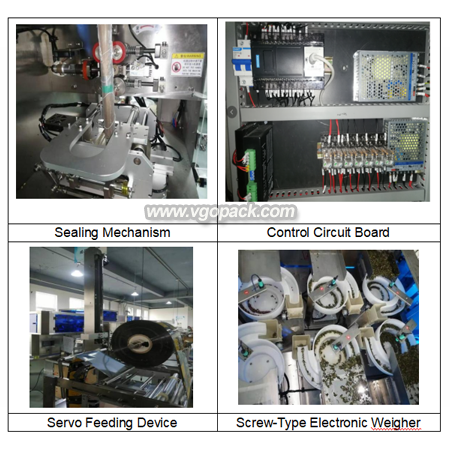

3.The electronic weighing and feeding system is suitable for single materials, multiple materials, and irregularly shaped materials that cannot be accurately measured by standard measuring cups or drum scales. Each weighing unit can be independently controlled and combined for discharge.

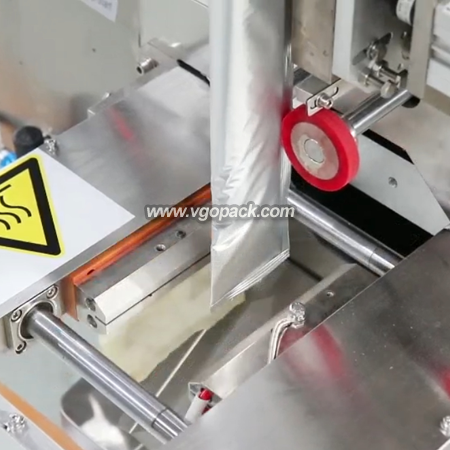

4.The inner bag uses ultrasonic sealing and cutting technology, providing firm and reliable seals with an aesthetically pleasing bag shape.

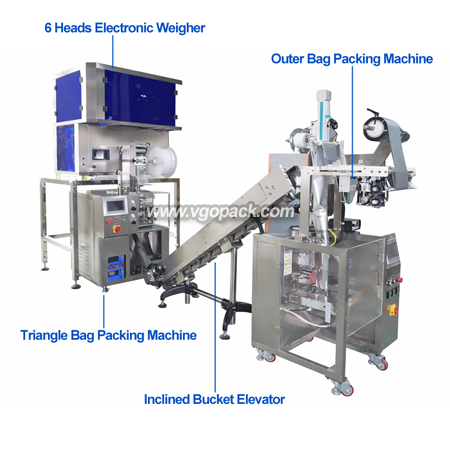

5.The inner and outer bag systems can be switched independently,allowing either linked operation or separate standalone operation.
6.The electronic weigher’s vibrating feeder, conveying hopper, and all material-contact parts are made of 304 stainless steel. The outer bag machine adopts a servo motor-driven feeding system, ensuring safety, reliability, and stable performance.
|
Equipment Model |
MD-160-06S |
|
|
Measuring Method |
Electronic weighing (screw vibration feeding) |
|
|
Combination Feeding |
Can combine up to 6 types of materials |
|
|
Production Efficiency |
30–50 bags/min |
|
|
Filling Efficiency |
5–40 bags/min |
|
|
Packaging Weight |
1–20 g |
|
|
Packaging Accuracy |
±0.2 g |
|
|
Control System |
PLC controller + color touch screen |
|
|
Inner Bag Size |
120 mm, 140 mm, 160 mm, 180 mm |
|
|
Inner Bag Sealing Type |
Triangular (pyramid) bag, flat bag (one-button switching) |
|
|
Inner Bag Material |
Non-woven fabric, nylon mesh, corn fiber |
|
|
Outer Bag Width |
20–280 mm |
|
|
Outer Bag Length |
30–170 mm |
|
|
Outer Bag Sealing Type |
Back seal, three-side seal |
|
|
Sealing Pattern |
Strip pattern, mesh pattern |
|
|
Applicable Packaging Materials |
PP, PE, PVC, PS, EVA, PET, PVDC+PVC, OPP+CPP laminated film, etc. |
|
|
Machine Material |
Stainless steel (carbon steel frame) |
|
|
Power Supply |
220V / 50Hz / 2 kW |
|
|
Air Consumption |
0.4 m³/min |
|
|

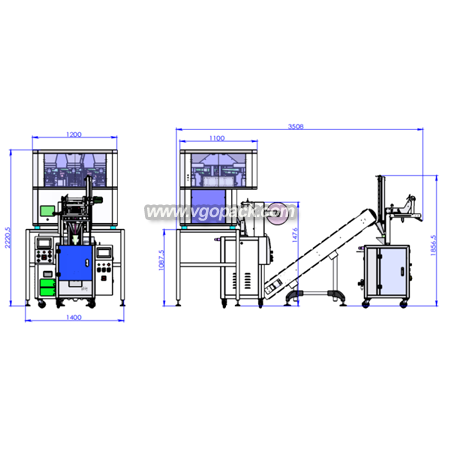

Machine Dimensions (L×W×H) |
3727 × 1260 × 2432 mm |
|
|
Machine Weight |
887 kg |
|
|
Optional Configuration |
Nitrogen filling device, exhaust device, coding machine |
This system is Widely used in the food and pharmaceutical industries for fully automatic packaging of tea and herbal slices.
1. One year quality warrant if no human damage
2. OEM service, design service and buyer label is offered
3. Online technical support service
4. Warmly welcome to visit our factory
