For capsule manufacturers, accurate counting and stable packaging are two of the most important factors in daily production. Whether the product is dietary supplements, vitamins, herbal capsules, softgels, or other nutraceutical capsules, the packaging process needs to be efficient, clean, consistent, and reliable.
A capsule counting packing machine is designed to automatically count capsules by quantity and pack them into bags or pouches. Compared with manual counting and packing, an automatic capsule counting packing system can reduce labor cost, improve counting accuracy, increase packing speed, and make the final package more professional.
In this guide, we will explain what a capsule counting packing machine is, how it works, what types of capsule products it can handle, what bag styles are available, and how to choose the right machine for your production needs.

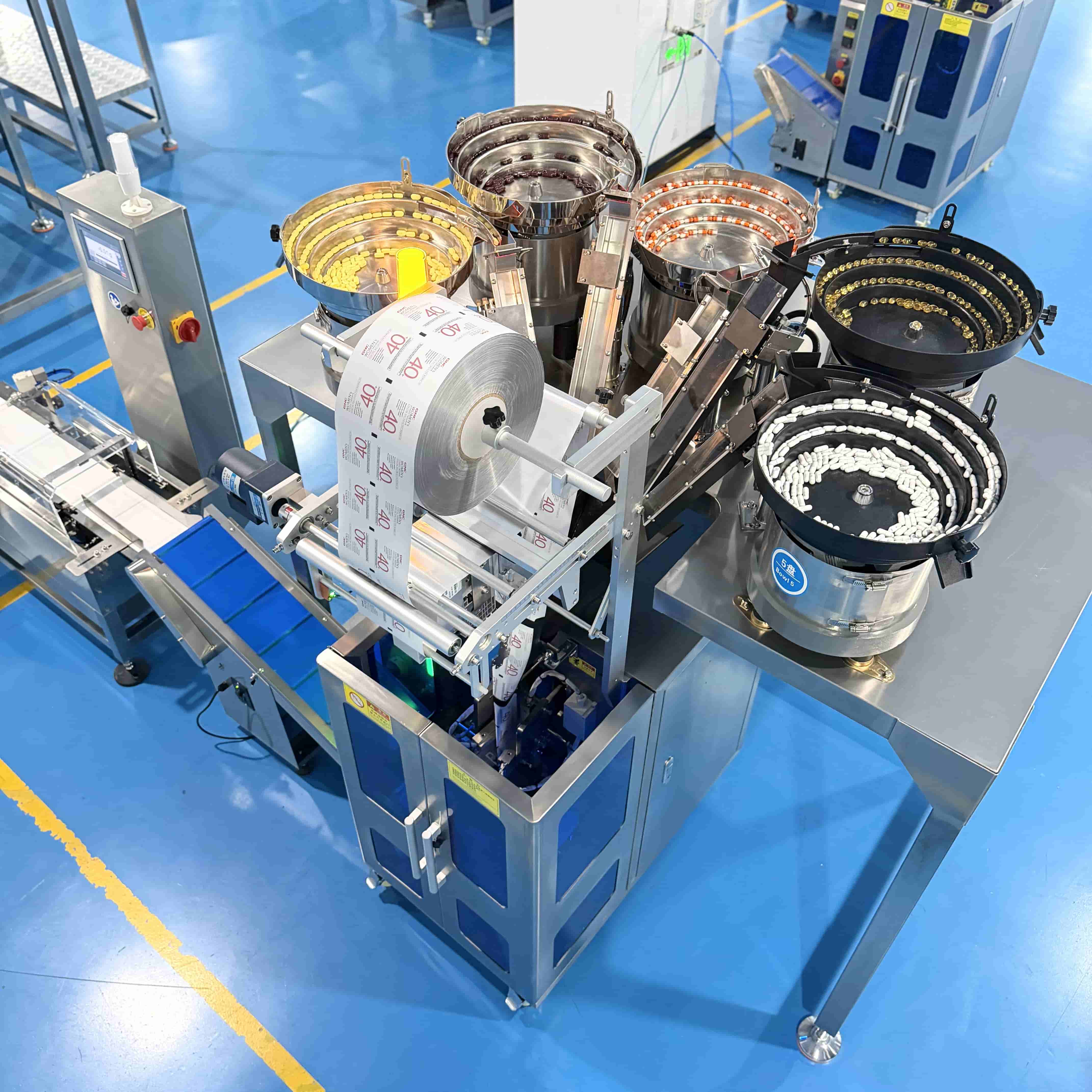

What Is a Capsule Counting Packing Machine?
A capsule counting packing machine is an automatic packaging system that combines capsule feeding, counting, filling, bag forming, sealing, cutting, and optional date printing in one production line.
The machine usually uses vibration feeders or counting bowls to separate capsules and feed them into a counting system. After the required quantity is reached, the capsules are discharged into the packing machine. The packing machine then forms the bag from roll film, fills the capsules, seals the bag, cuts it, and outputs the finished package.
For example, if the customer needs 2 capsules, 5 capsules, 10 capsules, or 20 capsules per bag, the machine can be set according to the required quantity. It can be used for single-type capsule packaging or mixed capsule packaging, depending on the product and machine configuration.
Why Do Capsule Manufacturers Need Automatic Counting Packing Equipment?
Many capsule manufacturers start with manual counting or semi-automatic packing. This may work for small production, but as order quantity increases, manual operation can become slow, inconsistent, and costly.
An automatic capsule counting packing machine helps solve several common problems:
1. Higher Counting Accuracy
Capsules are small and lightweight, so manual counting can easily lead to mistakes, especially during long working hours. Automatic counting systems use sensors and controlled feeding to count capsules more consistently.
2. Better Packing Efficiency
The machine can automatically finish feeding, counting, filling, sealing, cutting, and output. This reduces manual handling and improves production efficiency.
3. Lower Labor Cost
One automatic system can replace several manual workers in the counting and packing process. Operators mainly need to load materials, set parameters, check operation status, and collect finished bags.
4. Cleaner and More Professional Packaging
Automatic packing makes the bag size, sealing position, cutting position, and finished bag appearance more consistent. This is especially important for retail products, sample packs, travel packs, and promotional packs.
5. Flexible Quantity Per Bag
Capsule manufacturers may need different package quantities for different markets, such as 2 capsules per bag, 5 capsules per bag, 10 capsules per bag, or mixed capsule packs. A counting packing machine can be adjusted according to the required quantity.
What Products Can Be Packed?
Capsule counting packing machines are suitable for a wide range of regular-shaped capsule products, including:
- Single-Type Capsules
- Multi-Ingredient Capsules
- Softgel Capsules
- Functional Capsules
- Vitamin Capsules
- Herbal Capsules
- Nutritional Capsules
- Trial Packs or Sample Capsules
- Other Solid or Semi-Solid Regular-Shaped Capsule Products
For products with different sizes, shapes, surface conditions, or stickiness, sample testing is recommended before confirming the final machine configuration.
How Does a Capsule Counting Packing Machine Work?
A typical capsule counting packing machine works through the following steps:
Step 1: Capsule Feeding
Capsules are placed into the feeding hopper or vibration feeder. The vibration system moves the capsules forward smoothly and separates them before counting.
Step 2: Capsule Counting
The counting system detects and counts capsules according to the preset quantity. Different machine configurations can use different numbers of vibration feeders or counting bowls. For higher speed or mixed capsule packaging, multiple feeders can be used.
Step 3: Automatic Filling
Once the required number of capsules is reached, the system releases them into the bag forming area or filling position.
Step 4: Sealing and Cutting
The machine seals the bag and cuts it automatically. It can also add an easy-tearing notch, making the package easier for consumers to open.
Step 5: Finished Bag Output
After sealing and cutting, the finished bags are discharged by the machine and can be collected or connected with an output conveyor.

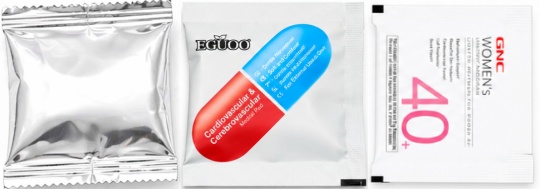

Available Bag Styles
Capsule counting packing machines can support different packaging styles based on the machine model and customer requirements. Common bag styles include:
Pillow Bag
Pillow bag is one of the most common packaging styles. It is simple, economical, and suitable for many capsule products.
Three-Side Seal Bag
Three-side seal bags offer a clean and compact appearance. They are suitable for small capsule packs, sample packs, and retail packaging.
Four-Side Seal Bag
Four-side seal bags provide a more premium package appearance and better sealing presentation. They are often used for small individual packs or high-end sample packs.
Premade Bag
For customers who want to use ready-made bags, a premade bag packing solution can also be considered. This depends on the bag size, bag material, opening method, and required production speed.
Main Features of Capsule Counting Packing Machines
A capsule counting packing machine usually includes the following features:
1. Machine with automatic function, such as feeding, counting, filling, sealing, cutting, printing the date information and cutting the easy tearing notch.
2. Machine with counting systems, vibration bowls & counting bowls could customized from 1 to 48 bowls.
3. Each machine are customized, efficient, flexible, reliable, low maintenance, productive, safe, pneumatic system, reliable working and convenient maintenance.
4. With Mitsubishi PLC control, the length of the bag can be set and cut on one step, saving time and film.
5. High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
6. Temperature independent PID control, more suitable for packing different materials.
7. Positioned stop function, without sticking knife or wasting film.
8. All control is realized through software, easy for function adjusting and technical upgrade.
9. Touch screen easy and quick setting and operation.
Why Choose VGOPACK Capsule Counting Packing Machine?
VGOPACK provides automatic packaging systems for different industries, including counting packing machines, vertical packing machines, premade bag packing machines, horizontal flow-pack machines, weight checker and metal detector systems, and customized multifunctional packing solutions.
For capsule packaging projects, VGOPACK can provide different counting packing solutions according to capsule type, quantity per bag, bag style, and required speed. The system can be customized with different numbers of vibration feeders or counting bowls to match different production requirements.
VGOPACK capsule counting packing machines are designed to be flexible, efficient, reliable, and easy to operate. They can help capsule manufacturers improve production efficiency, reduce manual counting errors, and achieve more consistent finished packaging.
Conclusion
A capsule counting packing machine is an efficient automatic solution for capsule manufacturers who need accurate counting and consistent bag packaging. It can automatically complete capsule feeding, counting, filling, sealing, cutting, date printing, and finished bag output.
For manufacturers of dietary supplements, vitamins, herbal capsules, softgels, and other nutraceutical capsule products, choosing the right counting packing machine can improve productivity, reduce labor cost, and create more professional packaging.
The best machine configuration depends on capsule type, quantity per bag, bag size, packing speed, and whether the product is single-type or mixed-type. By confirming these details before quotation, capsule manufacturers can select a more suitable and cost-effective packaging solution.
