Model：VGO-BL-EC6
This system is suitable for a wide range of food or non-food products, such as candy, biscuits, Pills, sugar-coated tablets, plain tablets, soft and hard capsules and other shapes of granules.
1. Customized Multi-Channels: 2 channels, 4 channels, 8 channels,16 channels, 32 channel etc.
2. Machine with fully automatic function, such as feeding, counting, filling, packing, strapping, box opening and closing etc.
3. Each machine are customized, efficient, flexible, reliable, low maintenance, productive, safe, pneumatic system, reliable working and convenient maintenance.
Touch screen easy and quick setting and operation.
|

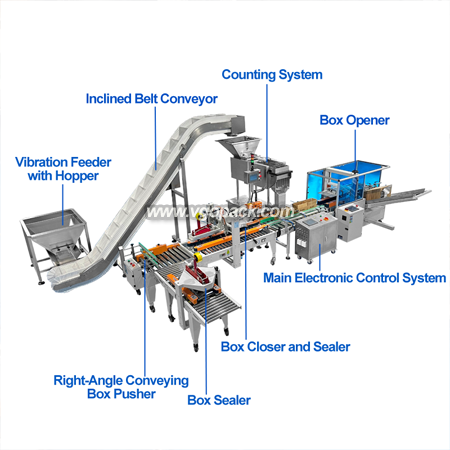

Vibration Feeder with Hopper |
Storage Hopper Capacity |
100-150 L |
|
Storage Hopper Material |
304 Stainless Steel |
|
|
Inclined Belt Conveyor |
Belt Material |
PP Modular Belt |
|

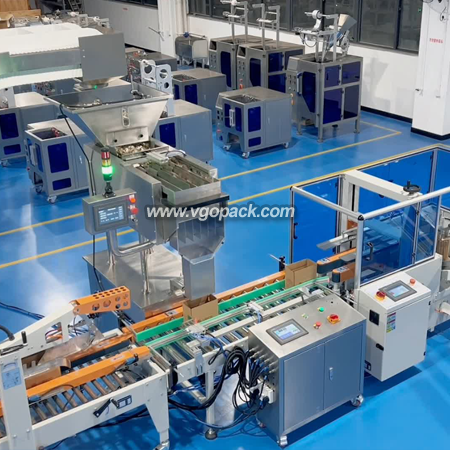

Counting System |
Working Principle |
The 6-Channel Counting Machine Uses The Photoelectric Sensing Principle to Count and Convey The Detected Products |
|
Box Conveying and Filling Line |
Function |
Automatic Packing and Filling |
|
Included Components |
Main Electronic Control Box |
|
|
Machine Body |
Carbon Steel |
|
|

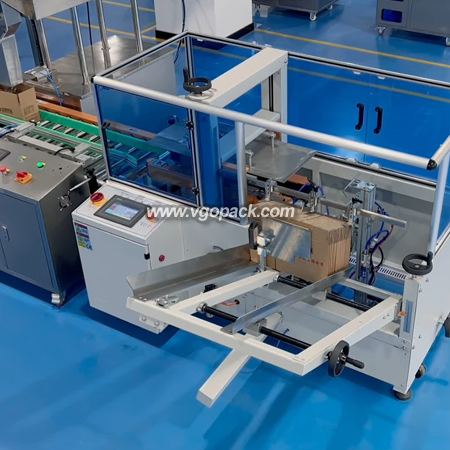

Box Opener |
Carton Erecting Speed |
15 cartons/min |
|
Carton Size Range |
L: 145–280 mm / W: 80–200 mm / H: 100–200 mm |
|
|
Adhesive Tape Width |
48 mm / 2 inch |
|
|
Carton Storage Capacity |
80–100 pcs / 1000 mm |
|
|
Machine Dimensions |
L: 1800 mm / W: 1800 mm / H: 1400 mm |
|
|

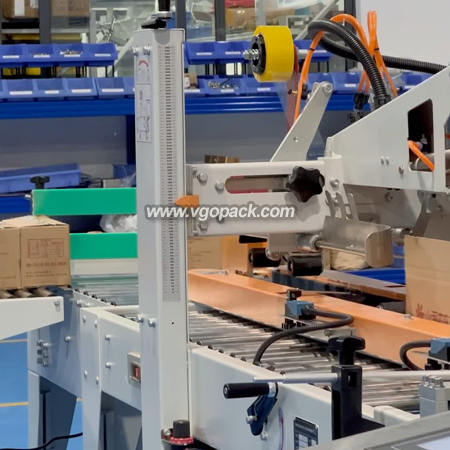

Top & Bottom Carton Sealer |
Carton Sealing Speed |
20 cartons/min |
|
Carton Size Range |
L: 130–280 mm / W: 80–200 mm / H: 90–200 mm |
|
|
Adhesive Tape Width |
48 mm |
|
|
Air Consumption |
50 NL/min |
|
|
Required Air Pressure |
0.6 MPa |
|
|
Machine Dimensions |
L: 1570 mm / W: 780 mm / H: 1250 mm |
|
|
Right-Angle Carton Pusher |
Conveyor Speed |
10–20 cartons/min |
|
Conveying Method |
Roller Conveyor |
|
|
Roller Material |
Carbon Steel |
|
|
H-type Carton Sealer |
Carton Opening Speed |
50 cartons/min |
|
Conveyor Speed |
18 m/min |
|
|
Carton Size Range |
L: 130 mm – unlimited / W: 80–300 mm / H: 90–400 mm |
|
|
Adhesive Tape Width |
48 mm |
|
|
Machine Size |
L: 710 mm / W: 600 mm / H: 870 mm (Excluding front and rear conveyor frame) |
This system is suitable for a wide range of food or non-food products, such as candy, biscuits, Pills, sugar-coated tablets, plain tablets, soft and hard capsules and other shapes of granules.
