Model：VGO-BL-EC6
This system is suitable for a wide range of food or non-food products, such as candy, biscuits, Pills, sugar-coated tablets, plain tablets, soft and hard capsules and other shapes of granules.

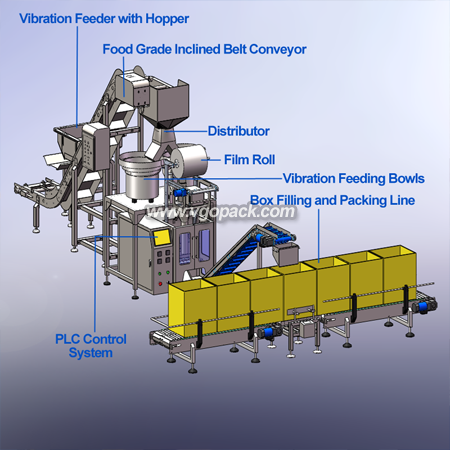

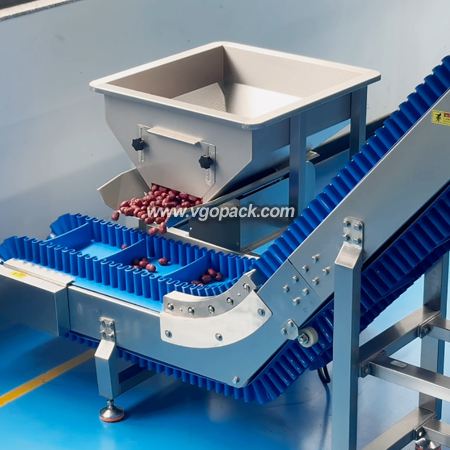

1. Vibration Feeder with Hopper:
(1) Machine Frame: Stainless Steel 304
(2) Hopper Volume: 100 Liters
(3) Hopper Surface: Stainless Steel 304, Dimple Plate

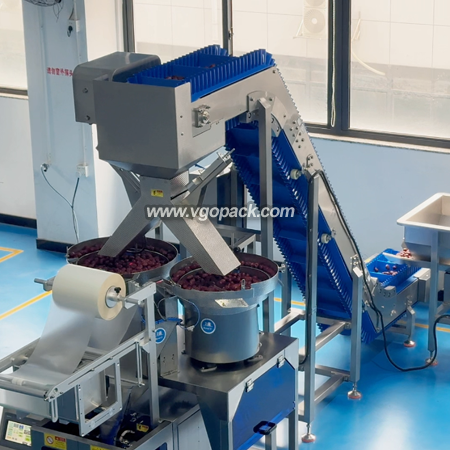

2. Inclined Belt Conveyor with Dispenser:
(1) Machine Frame: Stainless Steel 304
(2) Belt: Food Grade PU Belt
(3) Dispenser and Automatic Feeding Device Included
(4) Frequency Converter Included

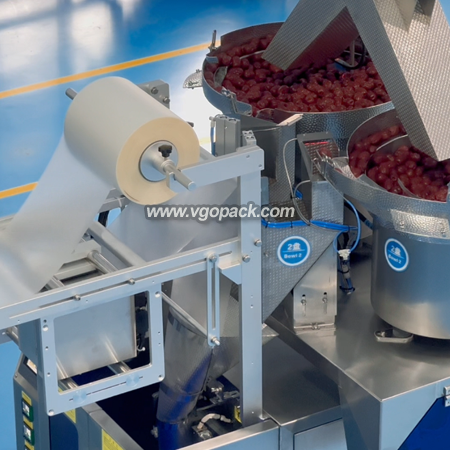

3. Counting Bowl:
(1) The Material of the Bowl Base: Carbon Steel
(2) The Bowl Surface: Stainless Steel 304, Dimple Plate
4. Fixed Platform for the Counting Bowl
(1) Machine Frame: Stainless Steel 304
(2) Standard Machine Structure
5. Model 320 Packing Machine
(1) The Specifications are Shown in The Table Below.
6. Output Belt Conveyor
(1) Machine Frame: Stainless Steel 304
(2) Width of the Belt: Customized

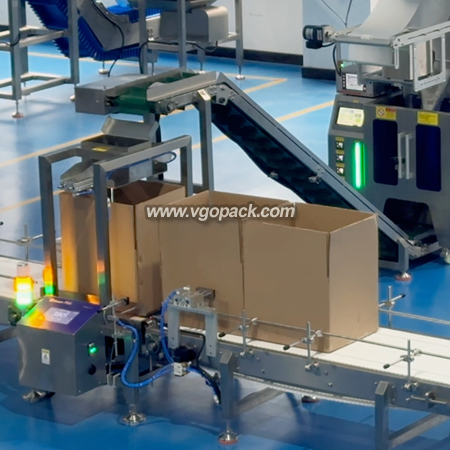

7. Box Filling and Packing Line
(1) Machine Frame: Stainless Steel 304
(2). Length of the Conveyor: 1500mm
(3). Height of the Conveyor Line: 375mm
(4). Belt:Plastic Modular Belt
(5). With Stainless Steel 304 Adjustable Bar
8. Counting and Weighing Controls
(1) Conveyor Line with Both Functions: Counting and Weighing Function.
9. Weight Checker
(1) Weighing Range: Max. 25 KG (Customized)
(2) Accuracy: ±10 G (Customized)
(3) Machine Frame: Stainless Steel 304
| Machine Model | VGO-V320 | VGO-V520 |
| Bag Style | Pillow Bag, 3 Side Seal Bag | Pillow Bag |
| Film Width | Max. 320 mm | Max. 520 mm |
| Bag Length | Max. 280 mm | Max. 350 mm |
| Bag Width | 70-150 mm | 140-250 mm |
| Width of Edge | 10 mm | 10 mm |
| Packing Speed | 10-80 bags/min | 4-10 bags/min |
| Machine Weight | 300 kgs | 450 kgs |
| Sealing | Straight/ Textured/ Plain | Straight/ Textured |
| Cutting | Serrated Cutter, Dense Serrated Cutter | Serrated Cutter |
| Dimensions (mm) | 1818 (L) × 800 (W) × 1619 (H) | 4540 (L) × 960 (W) × 2750 (H) |
| Air Consumption | 0.4-0.8 MPa | |
| Packing Material | Co-extrusion PE film, Heat Sealable Laminated Film such as OPP, CPP, PE | |
| Power | Single-Phase 220V, 50/60HZ | |
| Machine Frame | Stainless Steel #201,Stainless Steel #304 | |
|
Box Filling and Packing Line
|
Carton Opening Speed | 50 cartons/min |
| Conveyor Speed | 18 m/min | |
|
Carton Size |
Length: 130 mm (unlimited), Width: 80–300 mm, Height: 90–400 mm | |
| Power Supply | 220V / 50–60Hz | |
| Power | 240 W | |
| Adhesive Tape Width | 48 mm | |
| Table Height | 600–750 mm | |
| Machine Size | L: 710 mm × W: 600 mm × H: 870 mm (excluding carton magazine) | |
| Weight | 90 kg | |
This system is suitable for a wide range of food or non-food products, such as candy, biscuits, Pills, sugar-coated tablets, plain tablets, soft and hard capsules and other shapes of granules.
1. One year quality warrant if no human damage
2. OEM service, design service and buyer label is offered
3. Online technical support service
4. Warmly welcome to visit our factory
