Model：VGO-160S-06
1. Application Scope:
Widely used in the food and pharmaceutical industries for fully automatic packaging of tea and herbal slices.
2. Packaging Types:
Suitable for packaging of various bagged beverages, including:Green Tea, Black Tea, Dark Tea, Oolong Tea, Yellow Tea, White Tea, Flower Tea, Blended Tea, Flavored Tea, Herbal Tea, Coffee, Goji Berry, Mulberry Leaf, Chinese Herbal Pieces, etc.

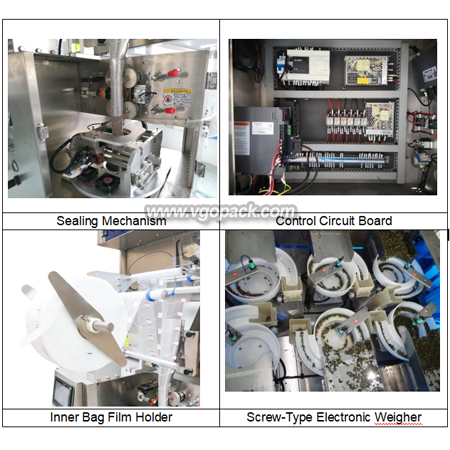

1.The machine adopts a PLC control system, ensuring smooth operation, precise movements, stable performance, and high packaging efficiency.

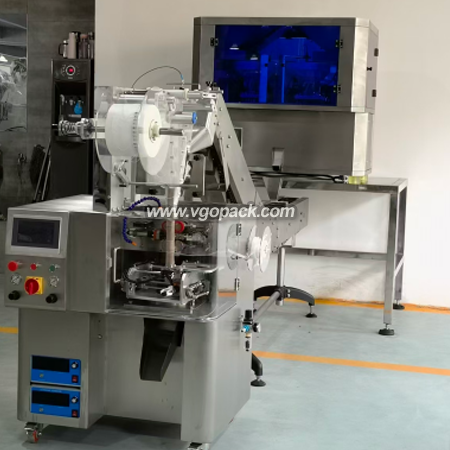

2.This machine is specially designed for triangular pyramid bag packaging, with a beautiful bag shape and stable sealing performance.

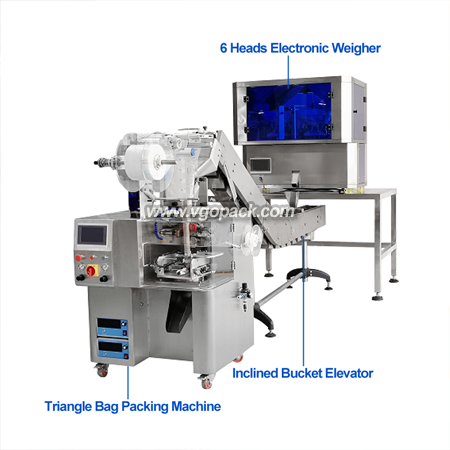

3.The machine is equipped with a manual feeding conveyor, allowing operators to place products onto the belt manually. The conveyor then transports the materials into the packing machine automatically.
4.The manual feeding conveyor is suitable for irregular materials, mixed materials, fragile products, or products that are not suitable for automatic weighing or measuring systems.
5.The inner bag uses ultrasonic sealing and cutting technology, providing firm and reliable seals with an aesthetically pleasing pyramid bag shape.
6.The machine is easy to operate through the touch screen. Bag length, packing speed, sealing temperature, and other parameters can be adjusted conveniently.
7.Material-contact parts are made of 304 stainless steel, meeting hygienic requirements and making the machine easy to clean and maintain.
8.The machine structure is compact and practical, suitable for small to medium-scale production and customized packaging applications.
|
Equipment Model |
MD-160S-06 |
|
|
Measuring Method |
Electronic Weighing (Screw Vibration Feeding) + Manual feeding |
|
|
Combination Feeding |
Can Combine Up to 6 Types of Materials |
|
|
Filling Efficiency |
5–40 Bags/min |
|
|
Production Efficiency |
30–50 Bags/min |
|
|
Packaging Weight |
1–20 g |
|
|
Packaging Accuracy |
±0.2 g |
|
|
Control System |
PLC Controller + Color Touch Screen |
|
|
Inner Bag Size |
120 mm, 140 mm, 160 mm, 180 mm |
|
|
Inner Bag Sealing Type |
Triangular (Pyramid) Bag, Flat Bag (One-Button Switching) |
|
|
Inner Bag Material |
Non-Woven Fabric, Nylon Mesh, Corn Fiber |
|
|
Manual Feeding |
Chain-Type Feeding |
|
|
Machine Material |
Stainless Steel (Carbon Steel Frame) |
|
|
Power Supply |
220V, 50Hz, 2 KW |
|
|
Air Consumption |
0.4 m³/min |
|
|

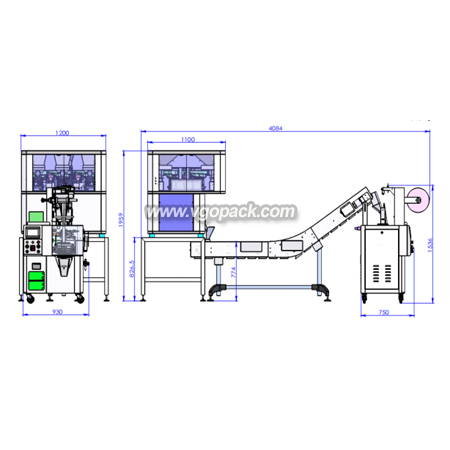

Machine Dimensions (L×W×H) |
3727 × 1260 × 2432 mm |
|
|
Machine Weight |
387 kg |
|
|
Optional Configuration |
Nitrogen Filling Device, Exhaust Device, Coding Machine |
|
|
Air Consumption |
0.4 m³/min |
|
|
Machine Dimensions (L×W×H) |
3727 × 1260 × 2432 mm |
|
|
Machine Weight |
887 kg |
|
|
Optional Configuration |
Nitrogen Filling Device, Exhaust Device, Coding Machine |
This system is Widely used in the food and pharmaceutical industries for fully automatic packaging of tea and herbal slices.
1. One year quality warrant if no human damage
2. OEM service, design service and buyer label is offered
3. Online technical support service
4. Warmly welcome to visit our factory
